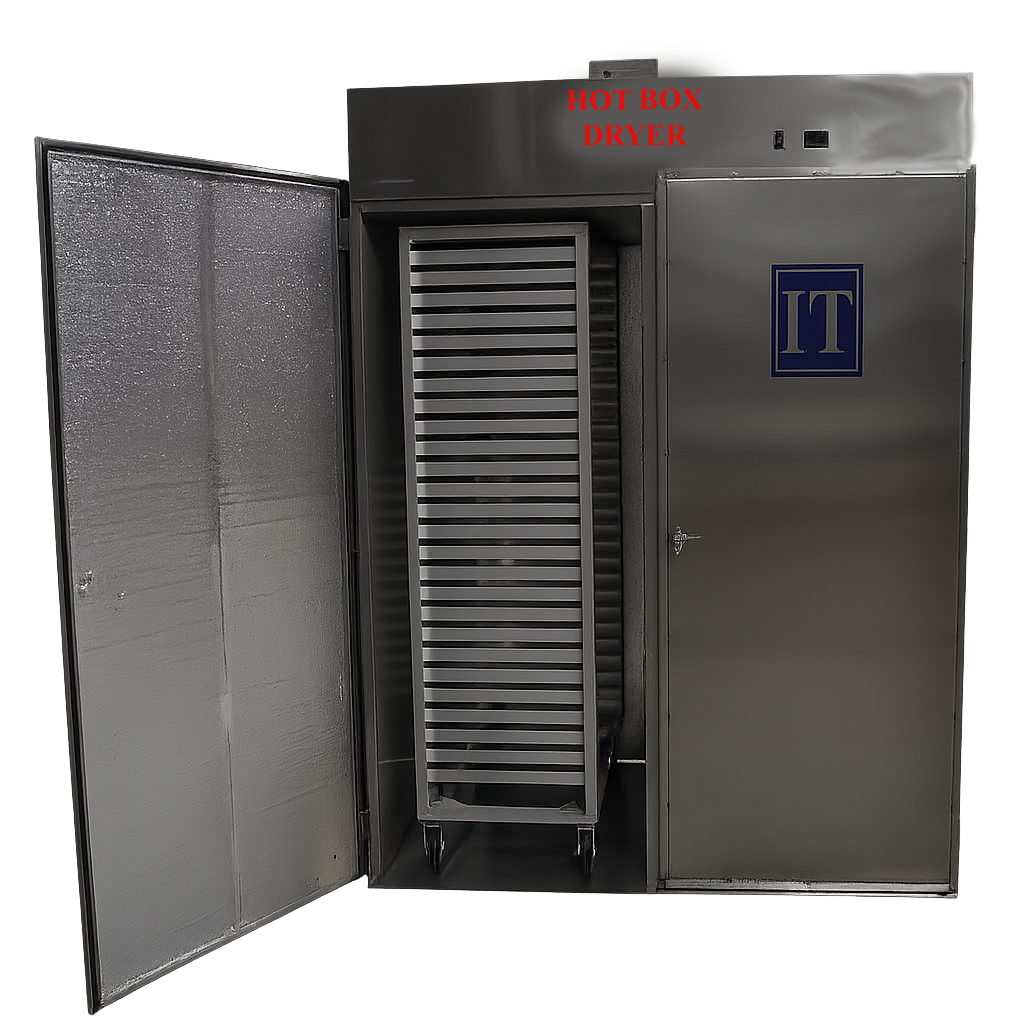

Hot Box Screen Dryer — Flexible, High-Capacity Drying Solution
Optimize your screen room workflow with the Image Technology Hot Box Dryer, engineered for efficiency, safety, and adaptability. This innovative unit features a rack roll-in design and is available in multiple configurations to meet the unique demands of your production environment.
Designed to support maximum screen throughput, the Hot Box Dryer can be configured as a two-sided pass-through system, enabling seamless integration between your coating and exposure areas—reducing handling time and contamination risk.
Click Here to View Model OptionsKey Features
Digital Control System – Set and maintain precise drying time and temperature, manually or automatically.
Even Airflow Distribution – Louvered ductwork ensures consistent air circulation across all screens.
HEPA Filtration – High-efficiency particulate air filtration provides clean, particle-free drying—greatly reducing pinholes.
Roll-In Rack Design – Rack-accessible drying system with optional pass-through configuration for dual-sided screen room layout and streamlined processing.
Benefits
Boosts Emulsion Throughput – Accelerates screen drying and emulsion curing, allowing more screens to be processed per shift.
Humidity Mitigation – Eliminates moisture-related stencil failures and drying inconsistencies caused by ambient humidity.
Reduces Pin-holing & Defects – Clean Air Quality - air and stable temperature reduce the risk of imperfections.
Temperature-Stable Environment – Improves stencil adhesion, durability, and consistency.
Air-Tight Design – Gasket-sealed doors prevent air leakage and support stable internal drying conditions.
Smooth Operation – 180° door swing design stays open past 90° for hands-free access and safer loading.
Options & Customizations
• Conveyorized models available
• Electrostatic or HEPA filtration options
• Single-phase or 3-phase power configurations
• Custom-built chamber sizes upon request
Technical Specs
• Rack Capacity: Holds up to 2 full-size screen racks
• Inside Height Limit: Accommodates screens up to 75” tall
• Power Requirements: 220V, Single-Phase, 30 AMP
Specifications
Model | Racks | Dimensions (L x W x H) | Pass Through |
---|---|---|---|
HBSD-820 | 1 | 46” x 48” x 88" | No |
HBSD-840 | 1 | 46” x 48” x 88” | Yes |
HBSD-950 | 2 | 75” x 46” x 88” | No |
HBSD-975 | 2 | 75” x 46” x 88” | Yes |
All models support screen sizes up to 25” x 36”. Custom sizes available.
